Once upon a time I decided to to a DIY timing belt change--I
mean--I can change brake pads with the best of 'em and you should see me do an
oil change; so how hard can it be to change the timing belt? Answer below.
How it happened

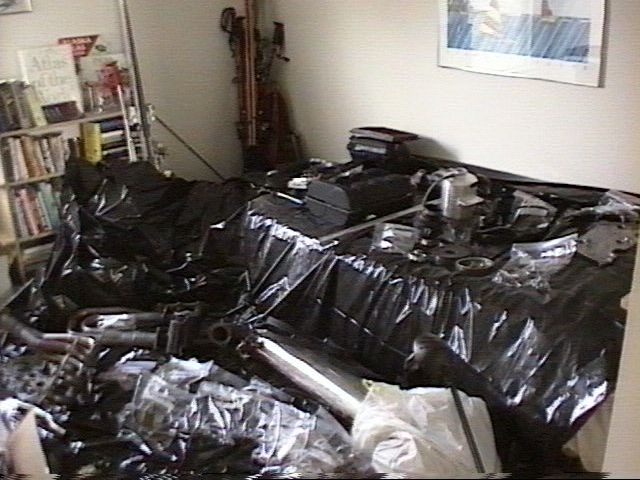

Room full of parts that should be on my car but aren't because I had to take
them off (note: headers on the left hand side, they are hard to remove/install)

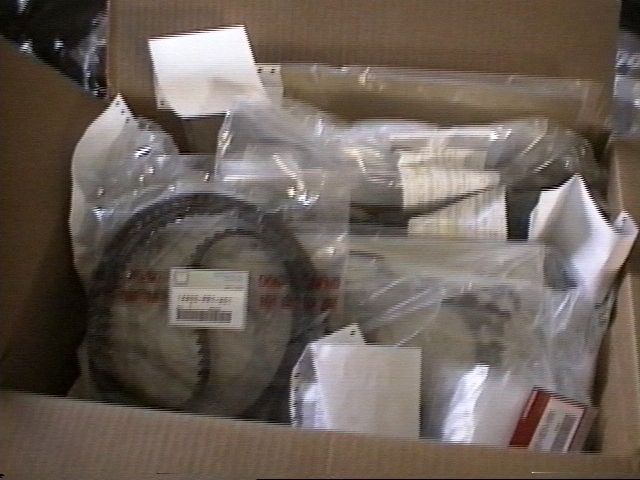

Box full of parts from Tracy. That's $700 bucks worth of every gasket,
o-ring, crush washer, seal and hose required to put the heads back on

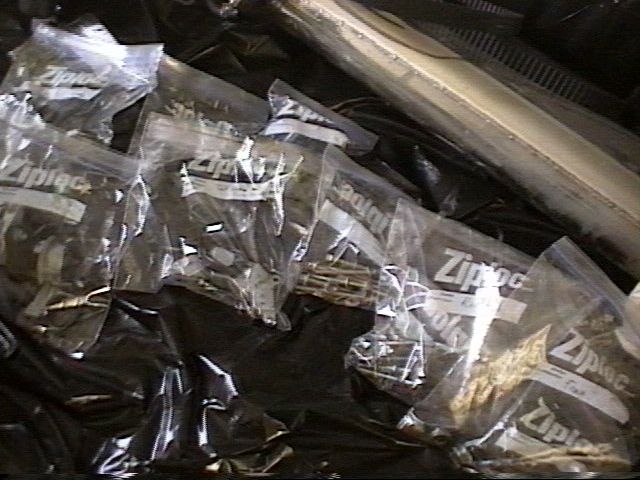

Labeled Ziploc bags full of bolts and stuff

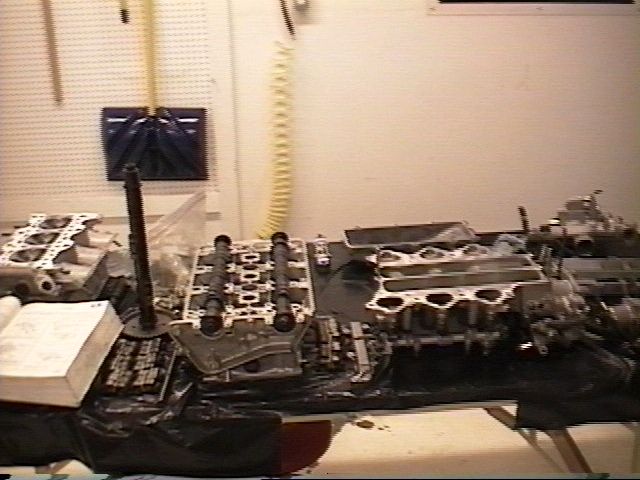

Head parts

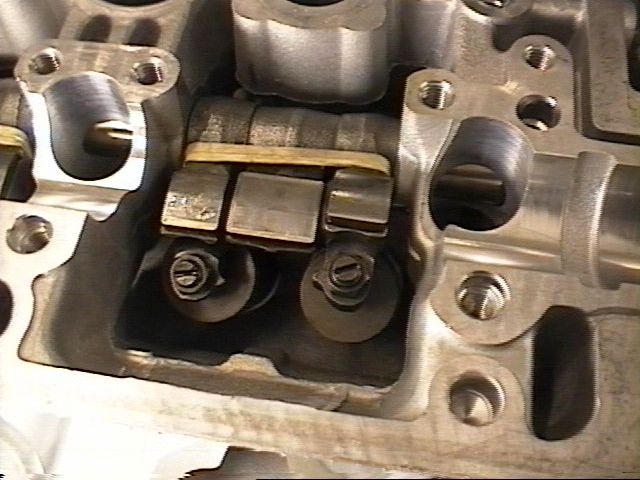

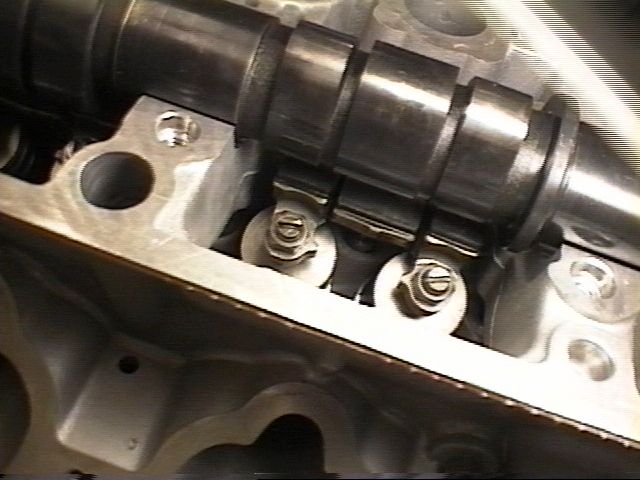

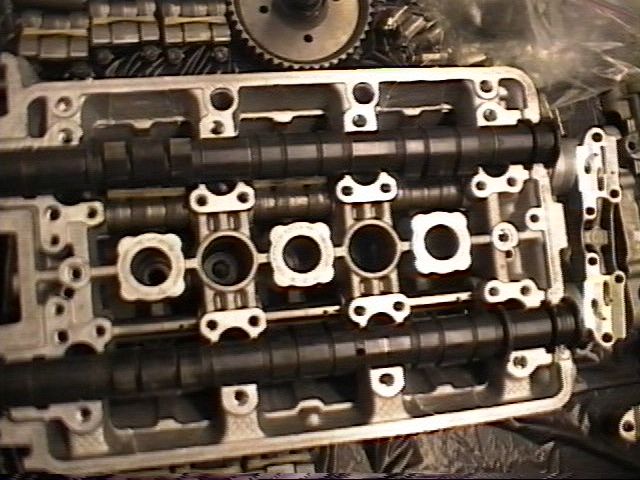

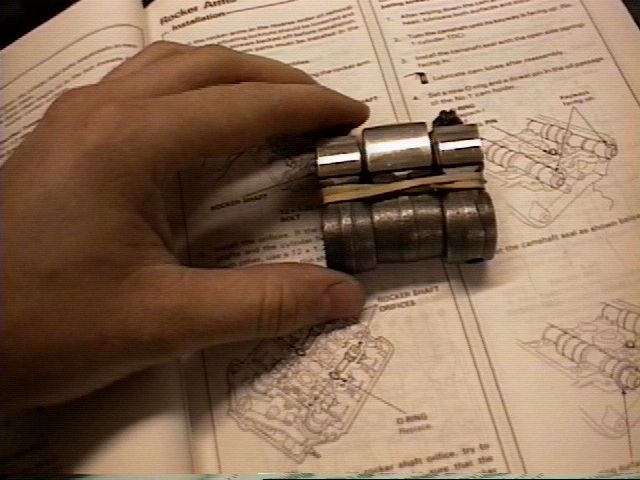

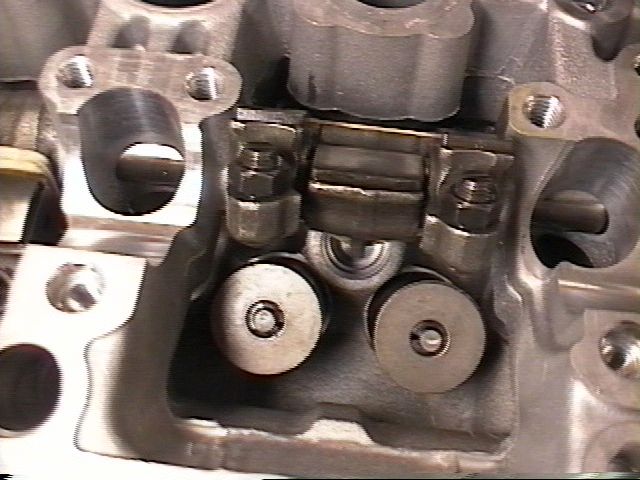

Top of a head w/cams & rocker arms
Un-bent valves

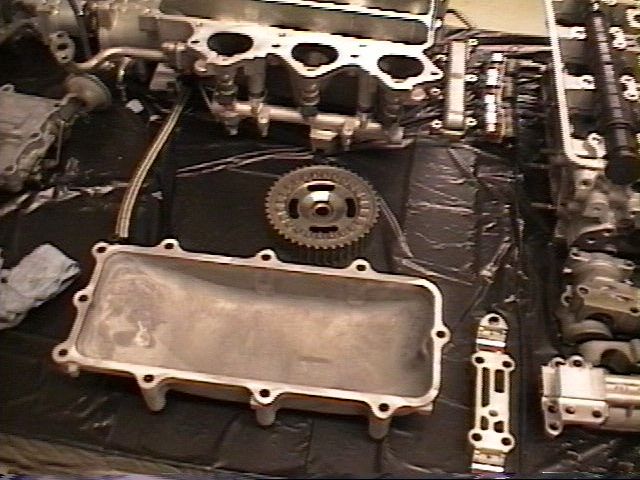

Intake chamber

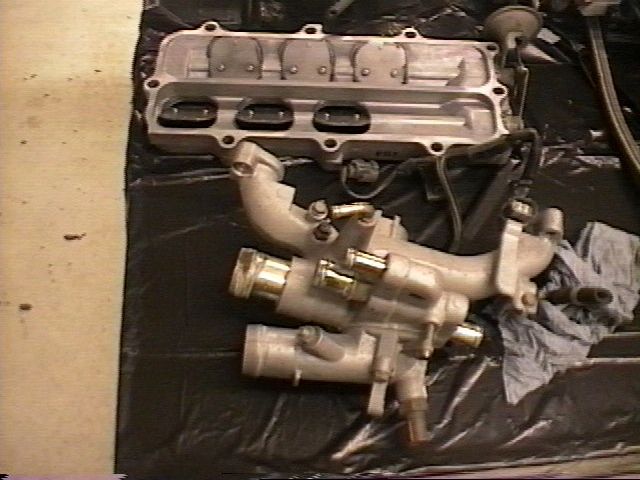

Thermostat type thing in foreground, butterfly intake volume control in
background

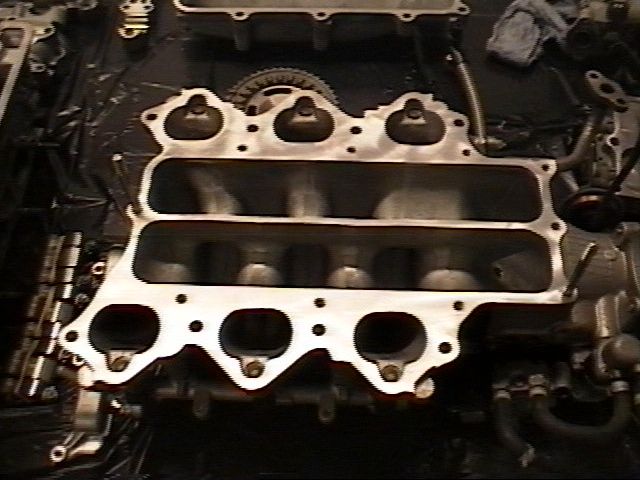

Intake

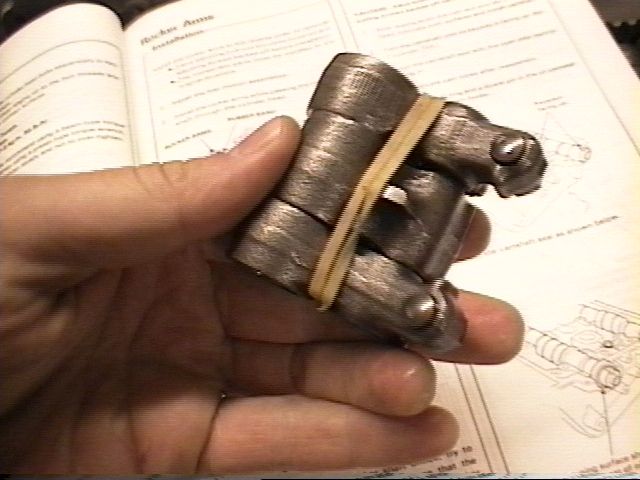

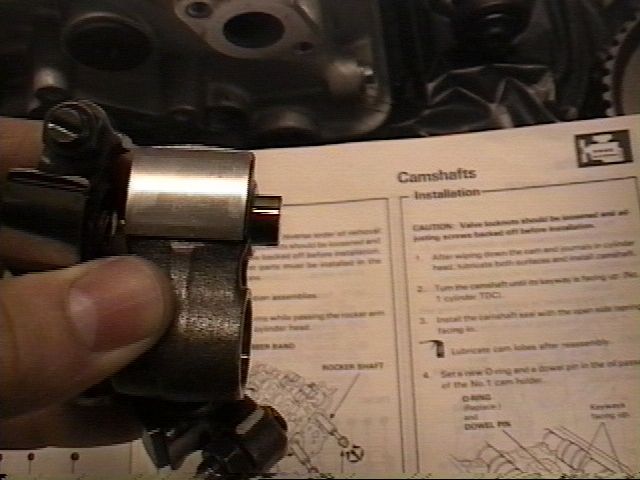

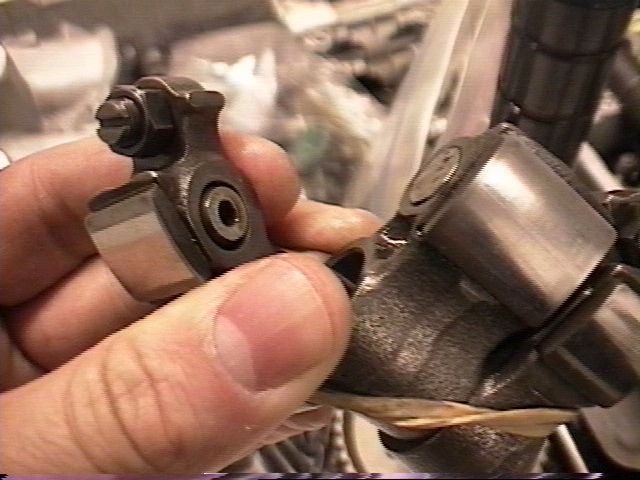

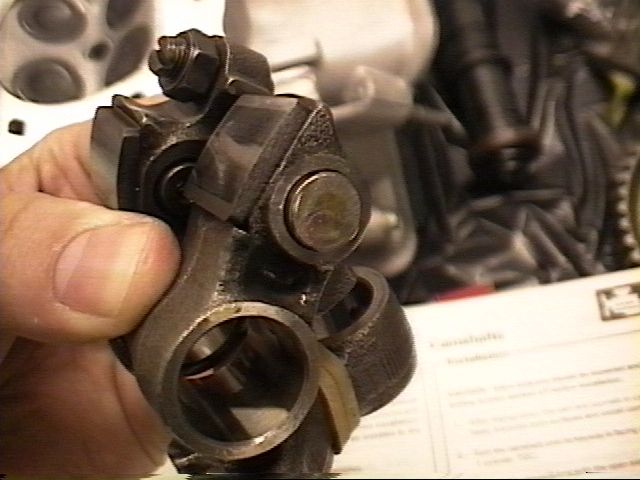

The secret of VTEC
Block

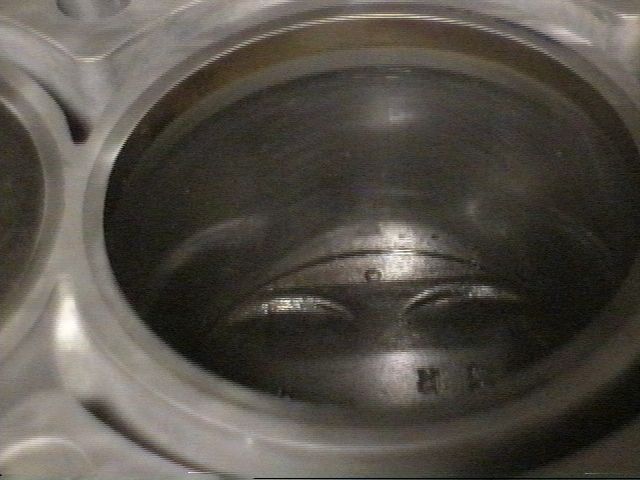

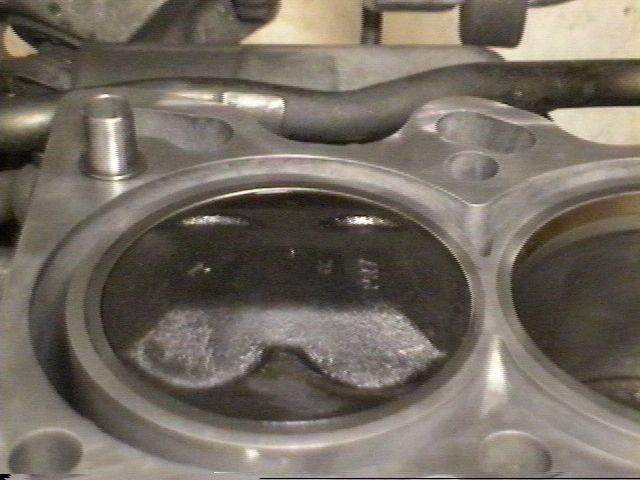

#1 Piston
#2 piston

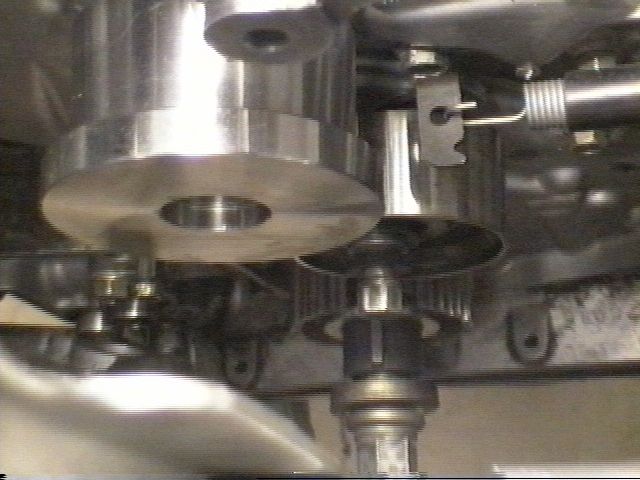

The timing belt goes here (water pump pulley, adjusting pulley and crankshaft
pulley)

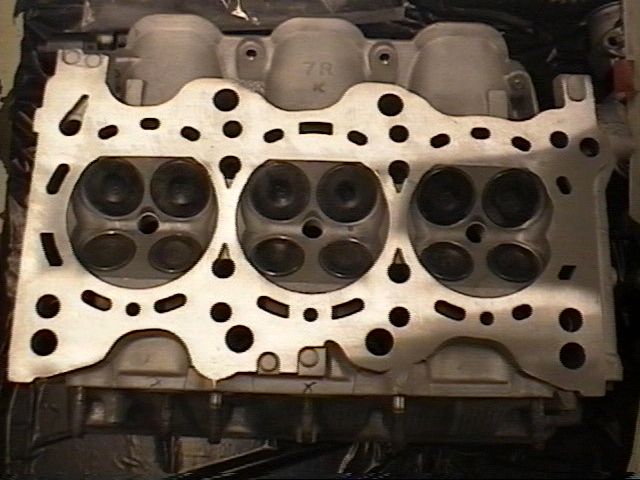

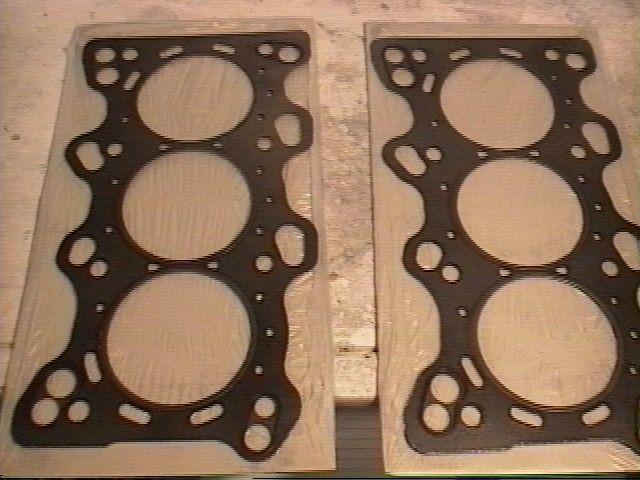

Head gaskets

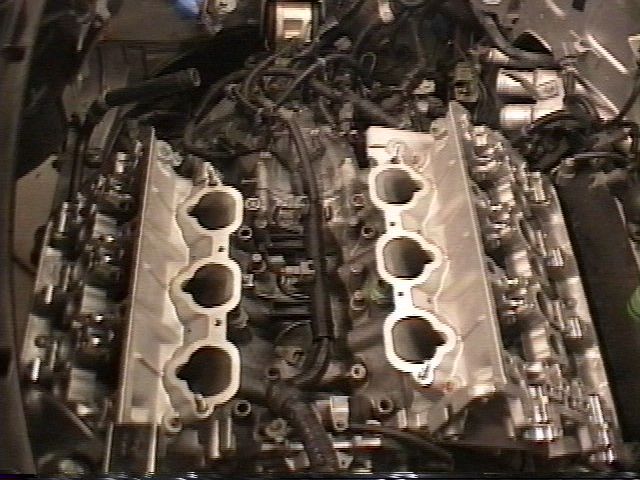

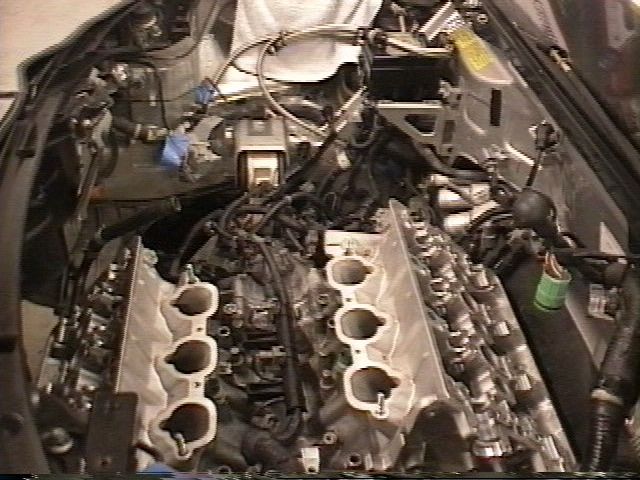

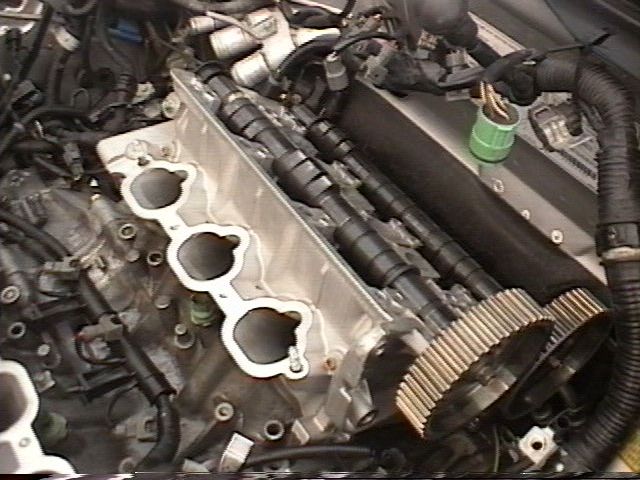

The heads are on

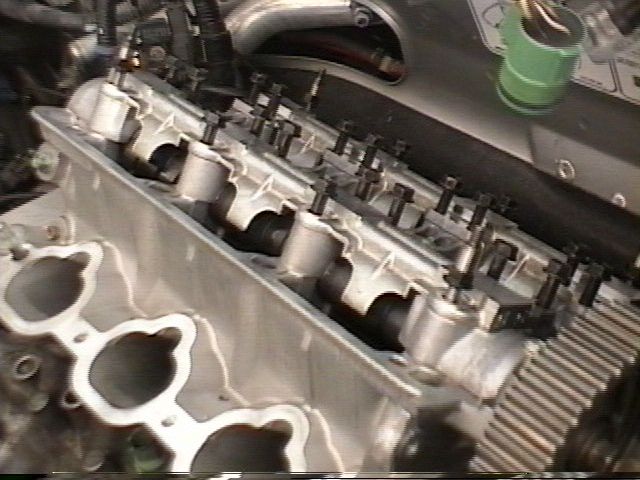

Lots of bolts to torque down in sequence

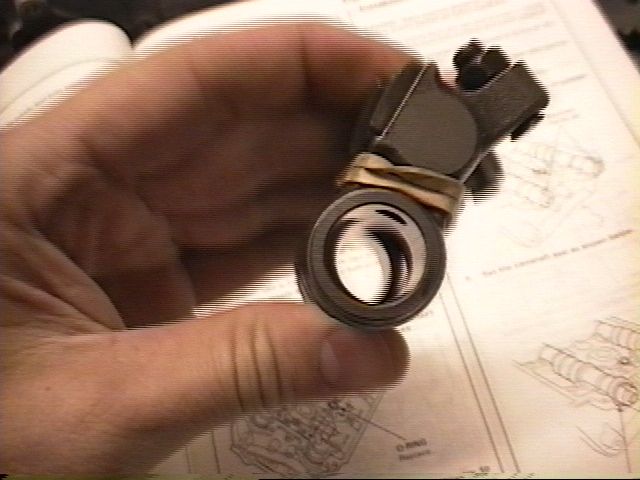

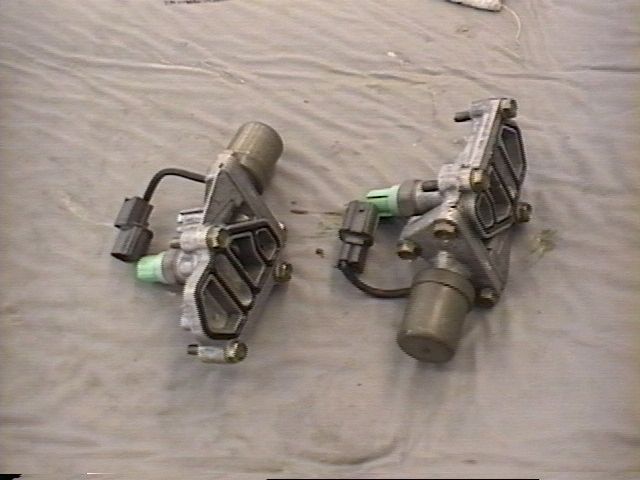

Spool valves

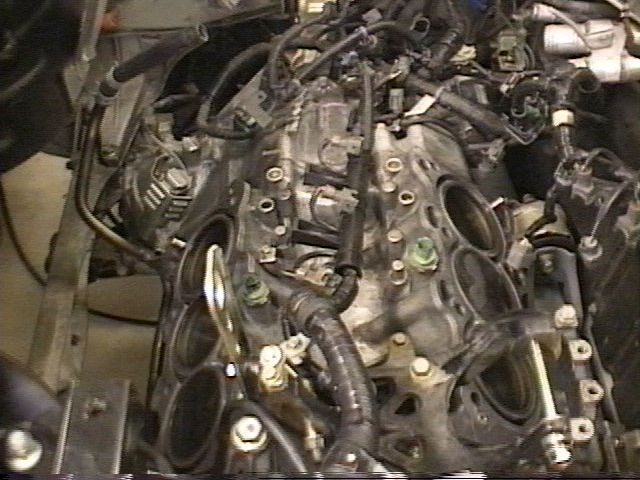

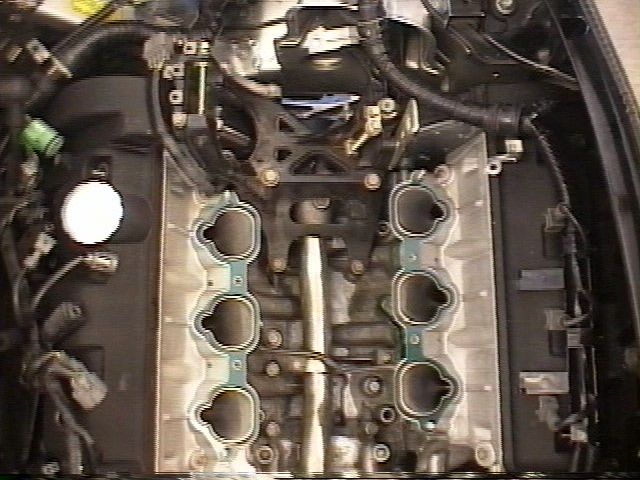

Waiting for the intake

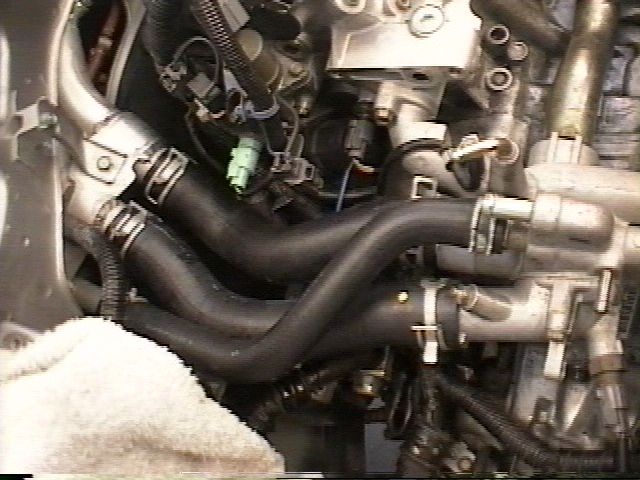

Water hoses

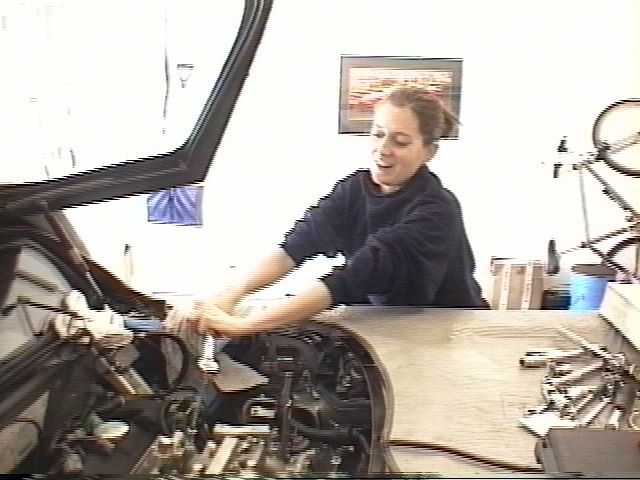

Abby's torquing down the intake while I have a beer--she did most of the engine
work, I drank most of the beer.
Unbelievably, when I was finished with the project, there were
no bolts or parts left over and the car seems to run better than before.
Happy wrenching!
